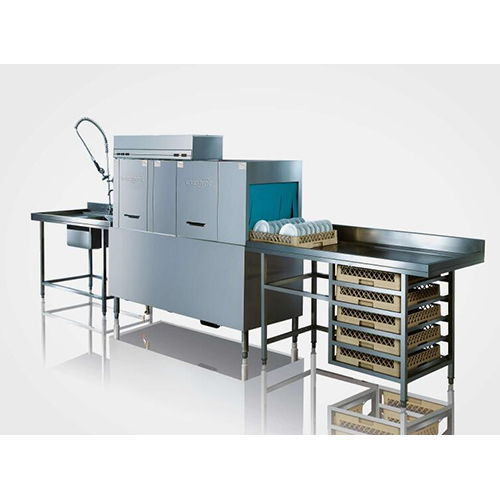

Conveyor Type Dishwashers

Model:RC-1T

Dimension:1150*772*1823mm
Max entry height:450mm
Passing width:508mm
Max capacity:200L
Unit water consumption:1.7L/rack
Wash tank capacity:90L
Booster capacity:14L
Wash temperature:55-60°C
Rinse temperature:82-90°C
Diameter of the water inlet hose:3/4in
Diameter of the drain pipe:2in
Incoming water pressure:2-5kg/cm²
Incoming water hardness:0.034-0.103g/L

Model:RC-1TR

Dimension:1750*772*1823mm
Max entry height:450mm
Passing width:508mm
Max capacity:200L
Unit water consumption:1.7L/rack
Wash tank capacity:90L
Booster capacity:14L
Wash temperature:55-60°C
Rinse temperature:82-90°C
Diameter of the water inlet hose:3/4in
Diameter of the drain pipe:2in
Incoming water pressure:2-5kg/cm²
Incoming water hardness:0.034-0.103g/L

Model:RC-2T

Dimension:1750*772*1823mm
Max entry height:450mm
Passing width:508mm
Max capacity:200L
Unit water consumption:1.7L/rack
Wash tank capacity:90L
Booster capacity:14L
Wash temperature:55-60°C
Rinse temperature:82-90°C
Diameter of the water inlet hose:3/4in
Diameter of the drain pipe:2in
Incoming water pressure:2-5kg/cm²
Incoming water hardness:0.034-0.103g/L

Model:RC-2TR

Dimension:2350*772*1823mm
Max entry height:450mm
Passing width:508mm
Max capacity:200L
Unit water consumption:1.7L/rack
Wash tank capacity:90L
Booster capacity:14L
Wash temperature:55-60°C
Rinse temperature:82-90°C
Diameter of the water inlet hose:3/4in
Diameter of the drain pipe:2in
Incoming water pressure:2-5kg/cm²
Incoming water hardness:0.034-0.103g/L
