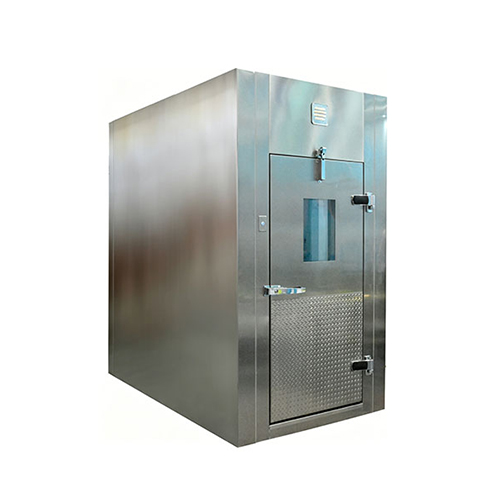

Commercial Stainless Steel Cold Room walk-in Chiller (10-90m³)

Capacity: 10-90m³
Refrigerant:R404A/1.5kg
Temperature:0℃~10℃
Door Size:860*1900mm
Door features: Bumper, viewing window, balance window
Material:0.5 mm stainless steel sheet (polished finish), 0.5 mm colour-coated steel sheet (matte finish),3.0mm anti-slip aluminum sheet for the floor, right angles
Thickness of the foam layer:100mm
Density of the foam layer:43.2kg/m³
Storage Temperature: Room temperature
Fire resistance rating: Standard flame retardant
Weight of the panel and equipment (excluding the weight of accessories):550-2400kg
Basic installation supplies: See the attachment when placing your order
*With audible and visual alarm (battery-powered)
*Without Refrigerant
*Installation materials: Refer to the list of materials for ancillary works

Introduction

This Commercial Stainless Steel Cold Room (10-90m³) provides a scalable, heavy-duty preservation solution for high-capacity foodservice operations, ensuring strict food safety compliance by maintaining a precise 0℃ to 10℃ temperature range. Built with 0.5mm polished stainless steel panels and high-density 100mm foam insulation, it excels in bulk ingredient storage, reducing thermal loss in busy central kitchens and hotels. Featuring an engineered door with a viewing window, bumper, and pressure balance window, it optimizes daily kitchen workflows while safeguarding valuable stock.

Key Features & Benefits

Fully Featured Heavy-Duty Cold Room Door: Equipped with a bumper, viewing window, and balance window to ensure safe, seamless kitchen workflows.
Premium Anti-Slip Aluminum Flooring: Features 3.0mm anti-slip aluminum sheets on the floor, perfect for heavy roll-in cart traffic.
High-Density 100mm Insulation Panels: The 43.2kg/m³ high-density foam layer minimizes temperature fluctuations in hot commercial kitchens.
Battery-Powered Audio-Visual Alarm: Includes a built-in audible and visual alarm to instantly protect ingredients during power outages.

Specifications

Model	Capacity	Dimension
RECRP-10C	10m³	200020002500mm
RECRP-20C	20m³	200040002500mm
RECRP-30C	30m³	300040002500mm
RECRP-40C	40m³	400040002500mm
RECRP-50C	50m³	500040002500mm
RECRP-60C	60m³	600040002500mm
RECRP-70C	70m³	560050002500mm
RECRP-80C	80m³	800040002500mm
RECRP-90C	90m³	600060002500mm
