Furnotel 750 Luxe Series Gas 2/3 Flat 1/3 Grooved Griddle with Cabinet
Features
- Both exterior and interior are constructed with 304 stainless steel.
- Cast iron burners positioned under the griddle plate.
- Equipped with an 18mm thick chrome-plated griddle plate.
- With flame failure protection for safe operation.
- Combines flat and grooved griddle surfaces on a single plate.
- LPG:0.946Kg/h | NG:1.128m³/h | 6kW×2
Description
Lock in the juice and bring out the flavor with the Furnotel 750 Luxe Series Gas 2/3 Flat, 1/3 Grooved Griddle with Cabinet.
In foodservice, efficiency and consistency are always the keys to success. With two griddle surfaces combined on one plate, chefs can handle a wide range of ingredients based on their cooking profile. The flat surface is ideal for pancakes, eggs, bacon, fried rice, and smash burgers, while the grooved surface is perfect for steaks, chicken breasts, and sausages. This versatile combo unit opens the door to higher productivity on the line.
Production Details
1. Combined Griddle SurfacesA 2/3 flat and 1/3 grooved surface comes together on one 18mm chrome-plated griddle, giving chefs the flexibility to cook different proteins side by side without switching equipment. The flat side handles pancakes, eggs, bacon, fried rice, and smash burgers with even, efficient heat transfer, while the grooved side sears steaks, chicken breasts, and sausages, locking in juices and adding classic grill marks. One unit, two techniques, less time spent moving between stations. |
 |
 |

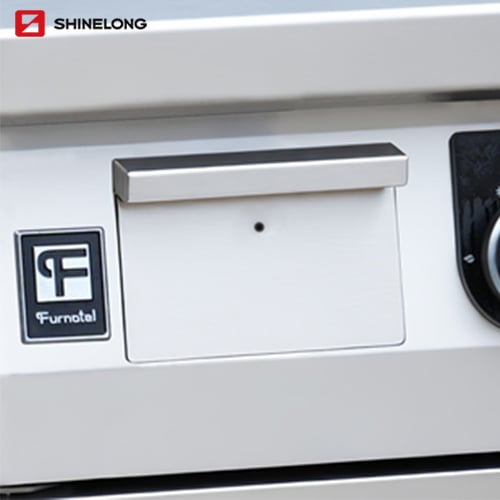

2. Crumb TrayA built-in crumb tray collects grease and debris, making the equipment easy to clean. |
3. Even Heat TransferThe cast iron burners deliver consistent, reliable heat across the chrome-plated griddle, transferring heat evenly to cook food to perfection. |
 |
 |
4. Spacious CabinetThe enclosed base cabinet meets H2 hygiene standards and gives crews a dedicated place for cookware, small tools, or backup oil, keeping everything close at hand throughout the service. |
Specifications
Dimension:800*750*850mm
Packing Size:910*910*1060mm
Materials: Furnace surface 304 # 2.0mm, operation panel 304 # 1.2mm, cabinet door 304 # 0.9mm
Net Weight:160kg
Gross Weight:180kg
Heat load:6kW*2
Gas Consumption: LPG:0.946Kg/h NG:1.128m³/h
Gas:
Natural Gas (12T), gas rated pressure: 2000Pa
Liquefied petroleum gas (20Y), gas rated pressure: 2800Pa
Artificial gas (6R), gas rated pressure: 1000Pa
Air inlet: ∅ 3/4"（DN20）
Plate size: 18mm thick low-alloy steel plate, 675mm * 440mm
Furnace head: H-shaped strip furnace head, heat load: 6kW;
Ignition: Pulse electronic ignition
Flameout protection: Thermal and electric flameout protection, furnace switch connected to safety system, setting of constant flame
